SIP Overview

3GPP/IMS CompactSIP addresses the needs of manufacturers developing 3G handsets, 3G datacards, 3G mobile platforms and 3G chipsets by providing a 3GPP/IMS compliant software stack that supports the key 3GPP authentication and security standards plus the required IETF SIP RFCs. The 3GPP/IMS CompactSIP stack was jointly developed between TeleSoft International and the world's #1 mobile service provider in order to make available the smallest, most efficient SIP protocol software solution for the 3GPP/IMS market. 3GPP/IMS CompactSIP is tested to be standards compliant and network interoperable using in-house 3GPP/IMS handset emulators and network simulators plus private access to live 3GPP networks.

3GPP/IMS CompactSIP is ideal for all applications where compact memory space and fast code execution are important such as 3G SmartPhones, 3G Datacards, 3G Chipsets and 3G PDAs.

3GPP/IMS CompactSIP is also available pre-ported and tested with the Wind River TCP/IP networking stack.

Features

3GPP/IMS CompactSIP provides a small memory footprint, high performance SIP module:

  • Jointly developed with #1 Mobile SP
  • Very small system memory size
  • Flexible, full-featured core
  • User Agent Client & Server
  • 3GPP/IMS Compliant
  • IETF Standards-based
  • OS independent
  • ANSI C for ease of portation

Applications

3GPP/IMS CompactSIP is developed specifically for next generation applications:

  • 3G Smartphones
  • 3G Datacards
  • 3G PDAs
  • WiMAX Products
  • Telco/VoIP Gateways
  • ATA/Residential Gateways

3GPP/IMS

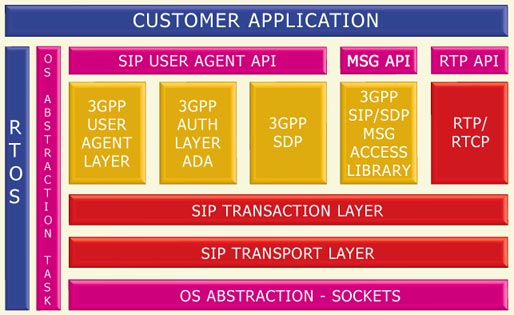

CompactSIP Block Diagram
3GPP/IMS CompactSIP Block Diagram

3GPP/IMS CompactSIP supports key standards:

  • TS 24.229 – IP Multimedia Call Control Protocol
  • TS 33.203 – IMS AKA Access Security
  • RFC 3261 – SIP: Session Initiation Protocol
  • RFC 3262 – SIP Reliability (PRACK)
  • RFC 3263 – SIP: Locating SIP Servers
  • RFC 3264 – SDP Offer/Answer
  • RFC 3265 – SIP   Specific Event Notification
  • RFC 1321 – MD5: Message Digest Algorithm
  • RFC 2327 – SDP: Session Description Protocol
  • RFC 2617 – HTTP Authentication
  • RFC 2806 – URLs for Telephone Calls
  • RFC 2833 – RTP Payload for DTMF Dial Digits, Telephone Tones & Telephony Signals
  • RFC 2915 – NAPTR: Naming Authority Pointer
  • RFC 2976 – SIP INFO Method
  • RFC 3204 – MIME Objects for ISUP and QSIG
  • RFC 3489 – STUN: Simple Traversal of User Datagram Protocol (UDP) Through NATs
  • RFC 3550 – RTP: Real-Time Transport Protocol
  • RFC 3515 – SIP Refer Method
  • RFC 3581 – An Extension to SIP for Symmetric Response Routing
  • IPSec support
  • IPv4 and IPv6 support
  • DNS Query/Response

3GPP/IMS CompactSIP is tight and fast:

  • Support for methods, headers, and message processing is configurable to save memory.
  • Smallest configuration fits in less than 100KB.
  • Just-in-time parser avoids parsing headers not used by SIP stack or application.
  • Optimized handling of timers avoids high start/stop overhead.
  • Crafted parser eliminates typical parser-generator bloat.

3GPP/IMS CompactSIP is easy to use:

  • Low-level API provides complete control over all SIP functions and message content.
  • API supports multiple independent services including multi-homing.
  • User can easily add special method and header processing.
  • SDP parser is separate from SIP parser for use in other SDP applications.

3GPP/IMS CompactSIP is easily ported to any environment:

  • Portable to any memory model, including flat, heap, pool-based, and mbuf or zbuf.
  • Follows coding conventions used by other TeleSoft software stacks.
  • Object-oriented API supports direct function-call interface, inter-task and inter-cpu messaging.
  • Highly scalable – no built-in limits other than those required by the system itself.

3GPP/IMS CompactSIP provides a broad development and debugging environment:

  • Sample applications to demonstrate use of the APIs.
  • Initial ports include Linux, uCLinux, VxWorks, Nucleus, Windows and TsRITE OSes.
  • Sample make files and imake scripts.
  • Debugging & auditing features allow compile-time & run-time details for logging of messages & events.

Compliance Testing:

  • Exclusive in-house 3GPP Handset emulator and Network Simulator test platforms.
  • Private access to 3GPP networks allow extensive live testing.
  • Rigorously tested against IETF RFC 4497 & PROTOS torture test suites and 3rd party equipment.
  • Successful SIPit Interoperability testing against multiple vendors equipment.

Documentation:

  • Comprehensive documentation.  Available in a searchable soft format.

TeleSoft International is a leading provider of “Protocols for Developers”. We license source code Protocol Stacks for VoIP, ISDN, Q.931, Q.921, QSIG, ML-PPP, PPP, Multi-Link Frame Relay, T1 RBS, E1 CAS R2 & X.25 to OEMs and ODMs worldwide.

Note: Information in this datasheet is preliminary and subject to change.
